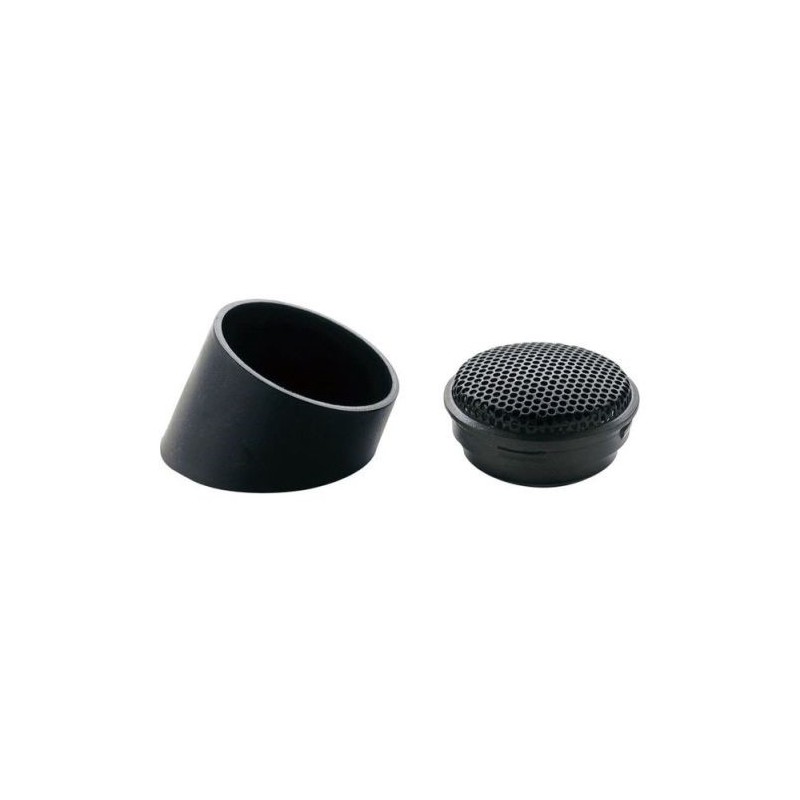

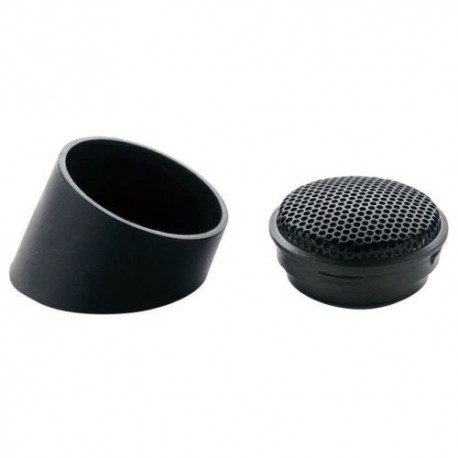

TWEETER CT190 CIARE 4 OHM 100 WATT 20mm

TWEETER CT190 CIARE 4 OHM 100 WATT 20mm

Dome Tweeter 0,75" Neodimio

Program Power

Rated Impedance

Nominal Diameter

Sensitivity

Voice Coil Diameter

Frequency Range

100 W

4 Ohm

0,75"- 20 mm

89 dB (1W/1m)

0,78 in - 20 mm

5000-20000 Hz

Nominal Diameter 0,75"- 20 mm

Rated Impedance 4 Ohm

Nominal Power Handling 1 50 W

Program Power 2 100 W

Sensitivity 3 89 dB (1W/1m)

Frequency Range 4 5000-20000 Hz

Minimum Impendance -

Basket Material -

Magnet Material Neodimio

Cone Material Seta

Cone Shape Cupola

Surround -

Suspension -

Voice Coil Diameter 0,78 in - 20 mm

Voice Coil Winding Material -

Voice Coil Length 1,5 mm - 0,06 in

Voice Coil Former Material Kapton

Connection Type -

Ferrofluid No

Magnet Gap Height 1,5 mm - 0,06 in

Max. Peak to Peak Excursion Xlim -

Efficiency Bandwidth Product EBP 357

Recommended Loading -

Volume/ Tuning Frequency

Maximum Recommended Frequency -

Version - Part Code
