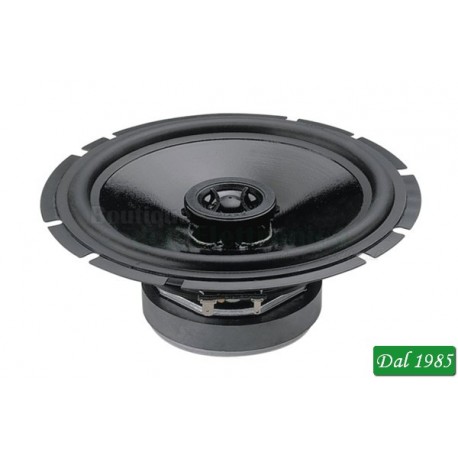

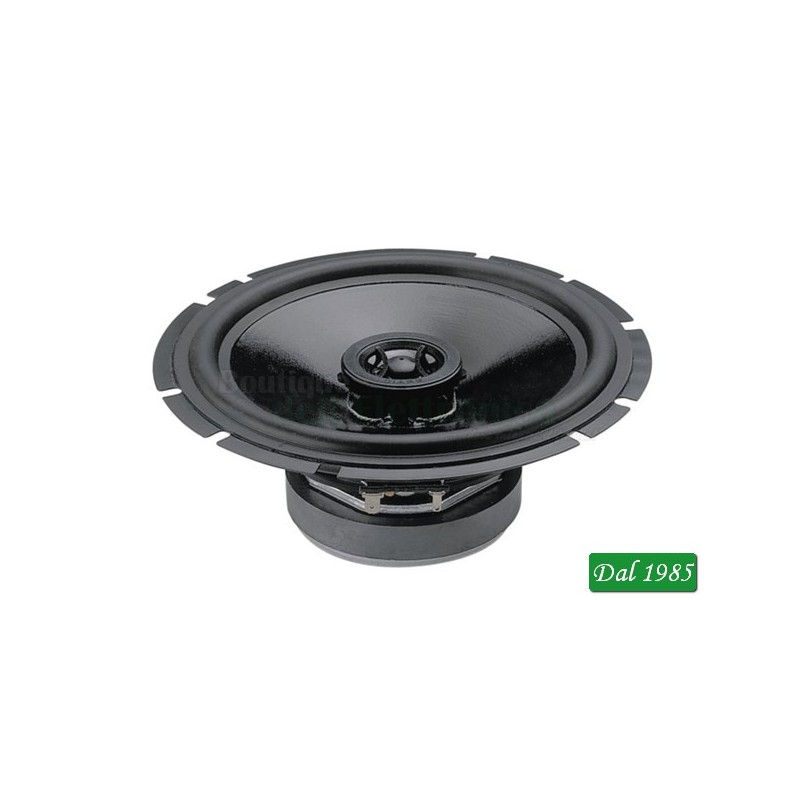

WOOFER 2 VIE COASSIALI 6,5'' 165mm 4 ohm MEMBRANA IN CELLULOSA SMORZATA , TWEETER IN NEODIMIO

WOOFER 2 VIE COASSIALI 6,5'' 165mm 4 ohm MEMBRANA IN CELLULOSA SMORZATA , TWEETER IN NEODIMIO

General Specifications

Musical power (W): 100

Nominal power AES (W) 50

Nominal diameter (''/mm) 6,5''-165mm

Nominal impedance (Ω) 4

Voice coil diameter (mm): 25

Sensitivity 1W/1m (dB) 91

Spare part code

Thiele Small Parameters

Note

Re 3,5

Fs 104

Qms 4,59

Qes 2,16

Qts 1,47

Mms 7,05

Cms 0,33

D 130

Vas 8,16

BxL 2,73

Linear Mathematical Xmax 1,1

n

Le (1kHz)

Materials

Basket Type Acciaio

Magnet Type Ferrite

Cone Material

Suspension Material Gomma

Spider Material

Former material Alluminio

Winding material

Connector type

Cone shape

Gap height 4

Dimension and weight

Overall diameter 165

Total depth 60

Flange thickness 6

Front mount baffle cutout diameter 142

N. of mounting holes 4

Mounting holes diameter (mm) 5

Bolt circle diameter 157

Gross weight 0,71
