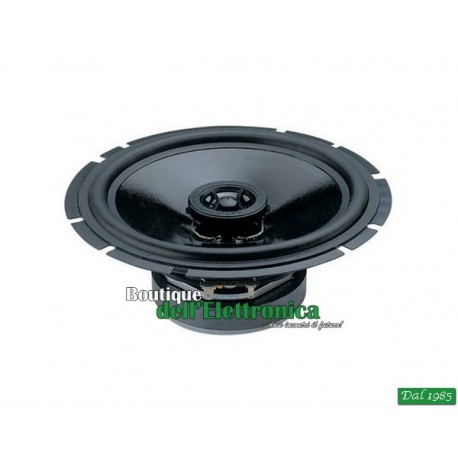

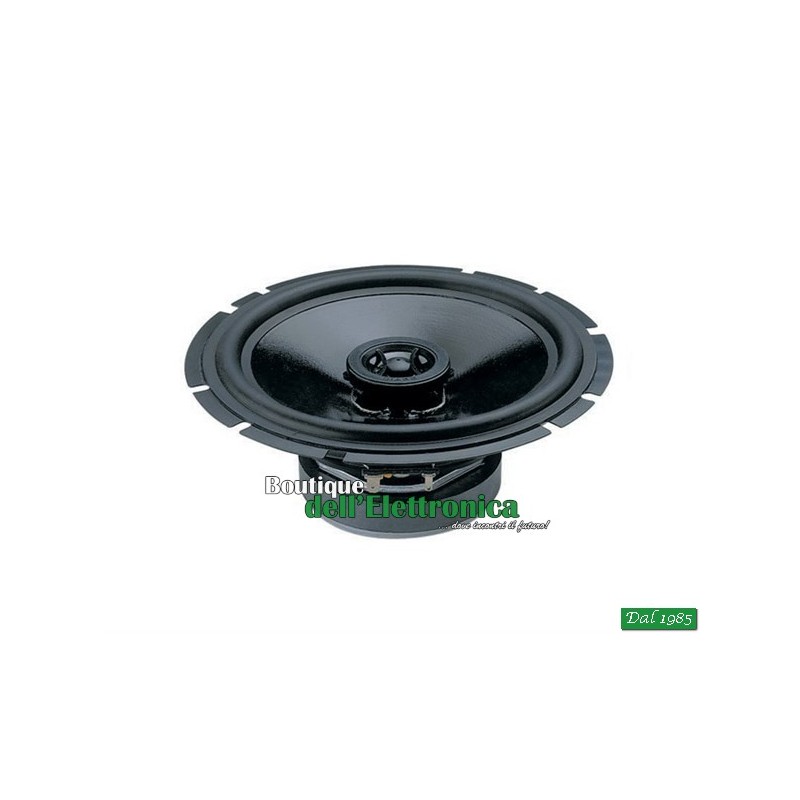

ALTOPARLANTI CIARE CZ100 4 OHM 80 WATT DIAMETRO 100MM

ALTOPARLANTI CIARE CZ100 4 OHM 80 WATT DIAMETRO 100MM

General Specifications

Musical power (W): 80

Nominal power AES (W) 30

Nominal diameter (''/mm) 4''-100mm

Nominal impedance (Ω) 4

Voice coil diameter (mm): 25

Sensitivity 1W/1m (dB) 91

Spare part code

Thiele Small Parameters

Note

Re 3,5

Fs 160

Qms 4,89

Qes 1,34

Qts 1,05

Mms 2,83

Cms 0,35

D 80

Vas 1,23

BxL 2,73

Linear Mathematical Xmax 1,1

n

Le (1kHz)

Materials

Basket Type Acciaio

Magnet Type Ferrite

Cone Material

Suspension Material Gomma

Spider Material

Former material Alluminio

Winding material

Connector type

Cone shape

Gap height 4

Dimension and weight

Overall diameter 100,5

Total depth 42

Flange thickness 7

Front mount baffle cutout diameter 91

N. of mounting holes 4

Mounting holes diameter (mm) 5,5

Bolt circle diameter 116

Gross weight 0,47
