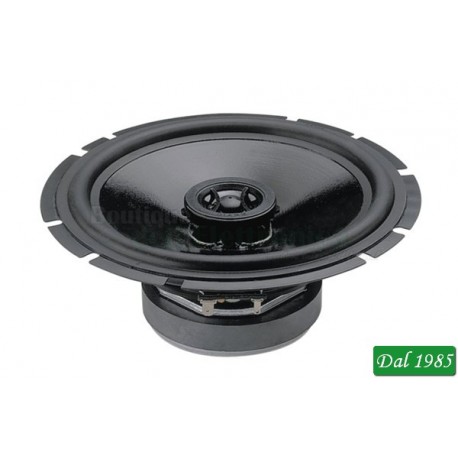

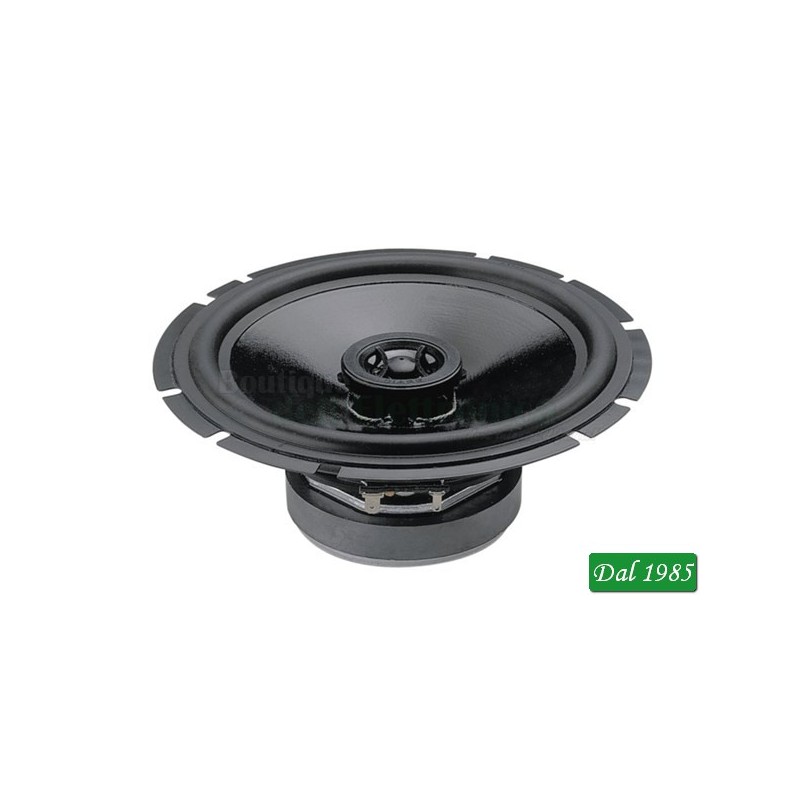

WOOFER 2 VIE COASSIALI 6,5'' 165mm 4 ohm MEMBRANA WOOFERIN CELLULOSA SMORZATA , TWEETER IN NEODIMIO

WOOFER 2 VIE COASSIALI 6,5'' 165mm 4 ohm MEMBRANA WOOFERIN CELLULOSA SMORZATA , TWEETER IN NEODIMIO

General Specifications

Musical power (W): 150

Nominal power AES (W) 60

Nominal diameter (''/mm) 6,5''-165mm

Nominal impedance (Ω) 4

Voice coil diameter (mm): 25

Sensitivity 1W/1m (dB) 90

Spare part code

Thiele Small Parameters

Note

Re 3,2

Fs 67

Qms 3,41

Qes 0,65

Qts 0,55

Mms 10

Cms 0,55

D 130

Vas 13,6

BxL 4,6

Linear Mathematical Xmax 3

n 0,62

Le (1kHz)

Materials

Basket Type Acciaio

Magnet Type Ferrite

Cone Material

Suspension Material Gomma

Spider Material

Former material Alluminio

Winding material

Connector type

Cone shape

Gap height 5

Dimension and weight

Overall diameter 165

Total depth 64

Flange thickness 6

Front mount baffle cutout diameter 142

N. of mounting holes 4

Mounting holes diameter (mm) 5

Bolt circle diameter 157

Gross weight 1,06
