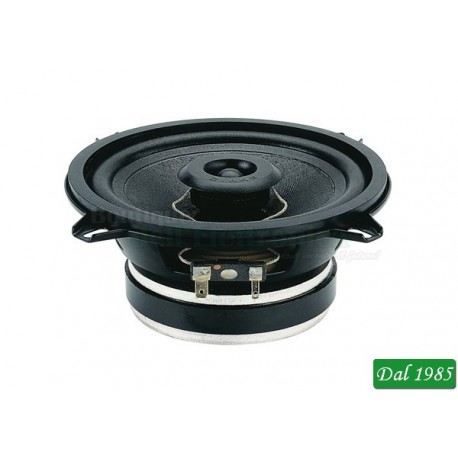

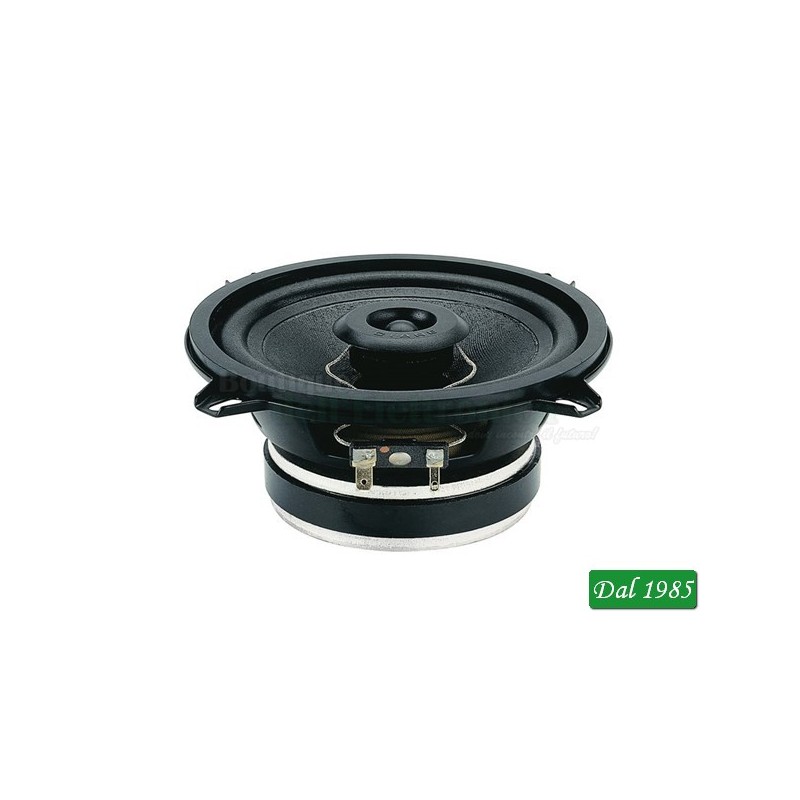

WOOFER 2 VIE COASSIALI 5'' 130mm 4 ohm 150 watt MEMBRANA WOOFERIN CELLULOSA SMORZATA , TWEETER IN NEODIMIO

WOOFER 2 VIE COASSIALI 5'' 130mm 4 ohm 150 watt MEMBRANA WOOFERIN CELLULOSA SMORZATA , TWEETER IN NEODIMIO

General Specifications

Musical power (W): 150

Nominal power AES (W) 60

Nominal diameter (''/mm) 5''-130mm

Nominal impedance (Ω) 4

Voice coil diameter (mm): 25

Sensitivity 1W/1m (dB) 89

Spare part code

Thiele Small Parameters

Note

Re 3,4

Fs 83

Qms 3,45

Qes 0,49

Qts 0,43

Mms 5,9

Cms 0,62

D 106

Vas 6,8

BxL 4,59

Linear Mathematical Xmax 2

n 0,76

Le (1kHz)

Materials

Basket Type Acciaio

Magnet Type Ferrite

Cone Material

Suspension Material Poliuretano

Spider Material

Former material Alluminio

Winding material

Connector type

Cone shape

Gap height 4

Dimension and weight

Overall diameter 129,5

Total depth 56,5

Flange thickness 8

Front mount baffle cutout diameter 112

N. of mounting holes 4

Mounting holes diameter (mm) 5

Bolt circle diameter 149

Gross weight 0,98
