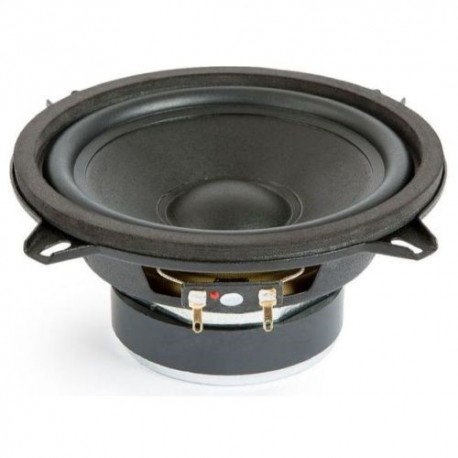

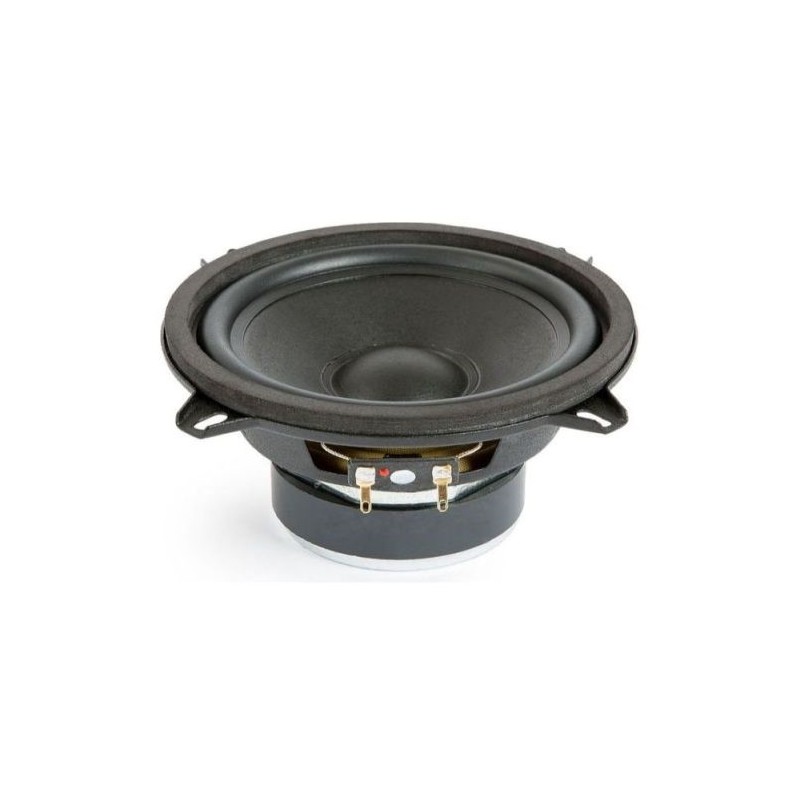

WOOFER CIARE HW 129 8OHM 150 WATT 130mm 5''

WOOFER CIARE HW 129 8OHM 150 WATT 130mm 5''

Woofer 5'' Ferrite

Program Power

Rated Impedance

Nominal Diameter

Sensitivity

Voice Coil Diameter

Frequency Range

150 W

8 Ohm

5''- 130 mm

89 dB (2,83V/1m)

1 in - 25 mm

60-6000 Hz

Nominal Diameter 5''- 130 mm

Rated Impedance 8 Ohm

Nominal Power Handling 1 50 W

Program Power 2 150 W

Sensitivity 3 89 dB (2,83V/1m)

Frequency Range 4 60-6000 Hz

Minimum Impendance -

Basket Material Acciaio

Magnet Material Ferrite

Cone Material -

Cone Shape -

Surround Gomma

Suspension -

Voice Coil Diameter 1 in - 25 mm

Voice Coil Winding Material -

Voice Coil Length 10,3 mm - 0,41 in

Voice Coil Former Material Alluminio

Connection Type -

Ferrofluid No

Magnet Gap Height 5 mm - 0,2 in

Max. Peak to Peak Excursion Xlim -

Efficiency Bandwidth Product EBP 99

Recommended Loading Cassa chiusa

Volume/ Tuning Frequency

Maximum Recommended Frequency -

Version - Part Code
