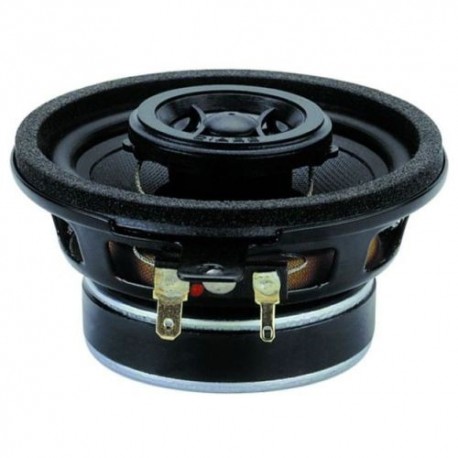

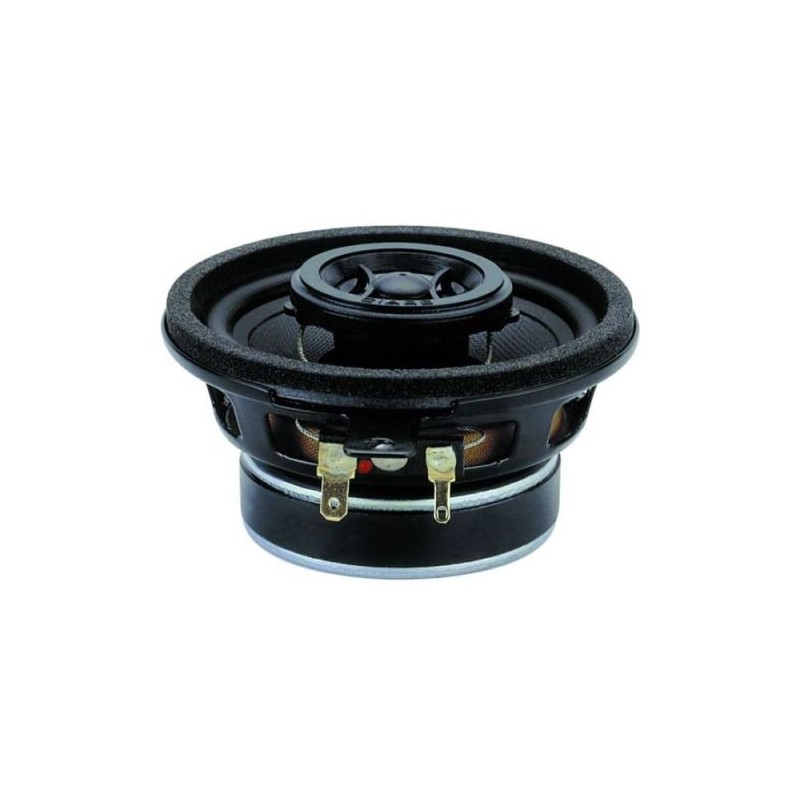

ALTOPARLANTE CIARE CZ087 4 OHGM 80 WATT COAXIAL 3,5'' 87 mm

ALTOPARLANTE CIARE CZ087 4 OHGM 80 WATT COAXIAL 3,5'' 87 mm

Coaxial 3'' Ferrite

Program Power

Rated Impedance

Nominal Diameter

Sensitivity

Voice Coil Diameter

Frequency Range

80 W

4 Ohm

3,5''- 87 mm

86 dB (2,83V/1m)

1 in - 25 mm

Nominal Diameter 3,5''- 87 mm

Rated Impedance 4 Ohm

Nominal Power Handling 1 30 W

Program Power 2 80 W

Sensitivity 3 86 dB (2,83V/1m)

Frequency Range 4 -

Minimum Impendance -

Basket Material Acciaio

Magnet Material Ferrite

Cone Material -

Cone Shape -

Surround Gomma

Suspension -

Voice Coil Diameter 1 in - 25 mm

Voice Coil Winding Material -

Voice Coil Length -

Voice Coil Former Material Alluminio

Connection Type -

Ferrofluid No

Magnet Gap Height 3 mm - 0,12 in

Max. Peak to Peak Excursion Xlim -

Efficiency Bandwidth Product EBP 69

Recommended Loading -

Volume/ Tuning Frequency

Maximum Recommended Frequency -

Version - Part Code
